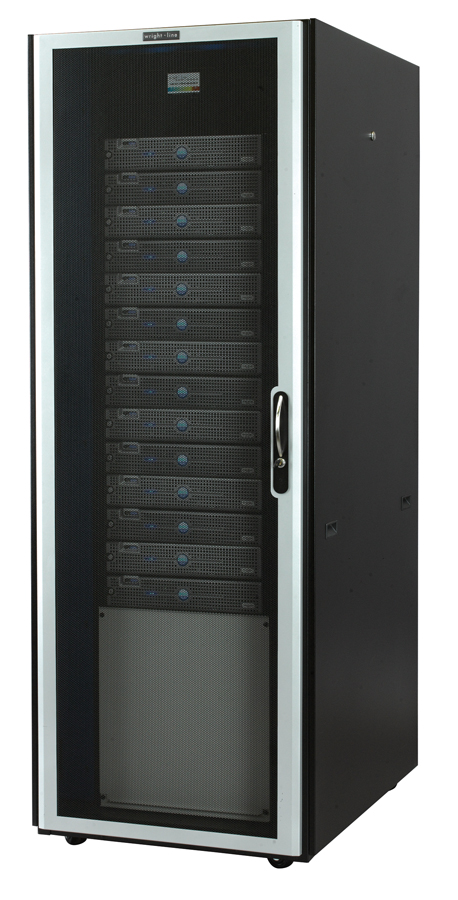

The Vantage S2 enclosure platform has been designed with change in mind, which is why so many Fortune 500 companies have standardized on it.

Equipment cooling remains a key concern for data center managers. The Vantage S2 meets all third-party rack requirements for open perforation on doors. When heat loads increase, the Vantage S2 system will continue to meet your requirements with the addition of rear door fans to exhaust higher loads.

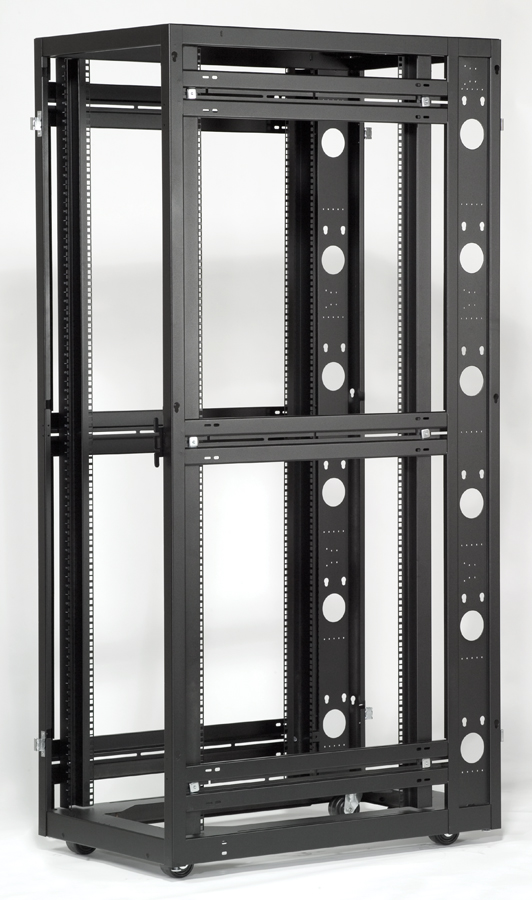

As cable densities increase, proper cable management is important to allow adequate hot air exhaust from hardware. Wright Line offers over 57 square inches of cable and power entry space on our top panels with eight separate three-inch diameter holes. This system can accommodate over 800 CAT5e or CAT6 cables.

The enclosure base provides an additional 510 square inches of open area for cabling through a raised floor. And, Vantage S2 has a unique integrated rear channel that accommodates almost any vertical power strip or cable management accessory.

A few key features:  Equipment mounting height of 25U, 42U, 45U and 49U for EIA-310-D 19" equipment, Maximizes data center real estate with a 24" width but also available in a 30" wide version, static load rating (weight capacity when stationary) is a generous 2000 lbs., accommodating even the most densely configured equipment, Doors exceed major server manufacturers recommended perforation pattern for proper airflow and ships fully assembled and carries a limited lifetime warranty.
